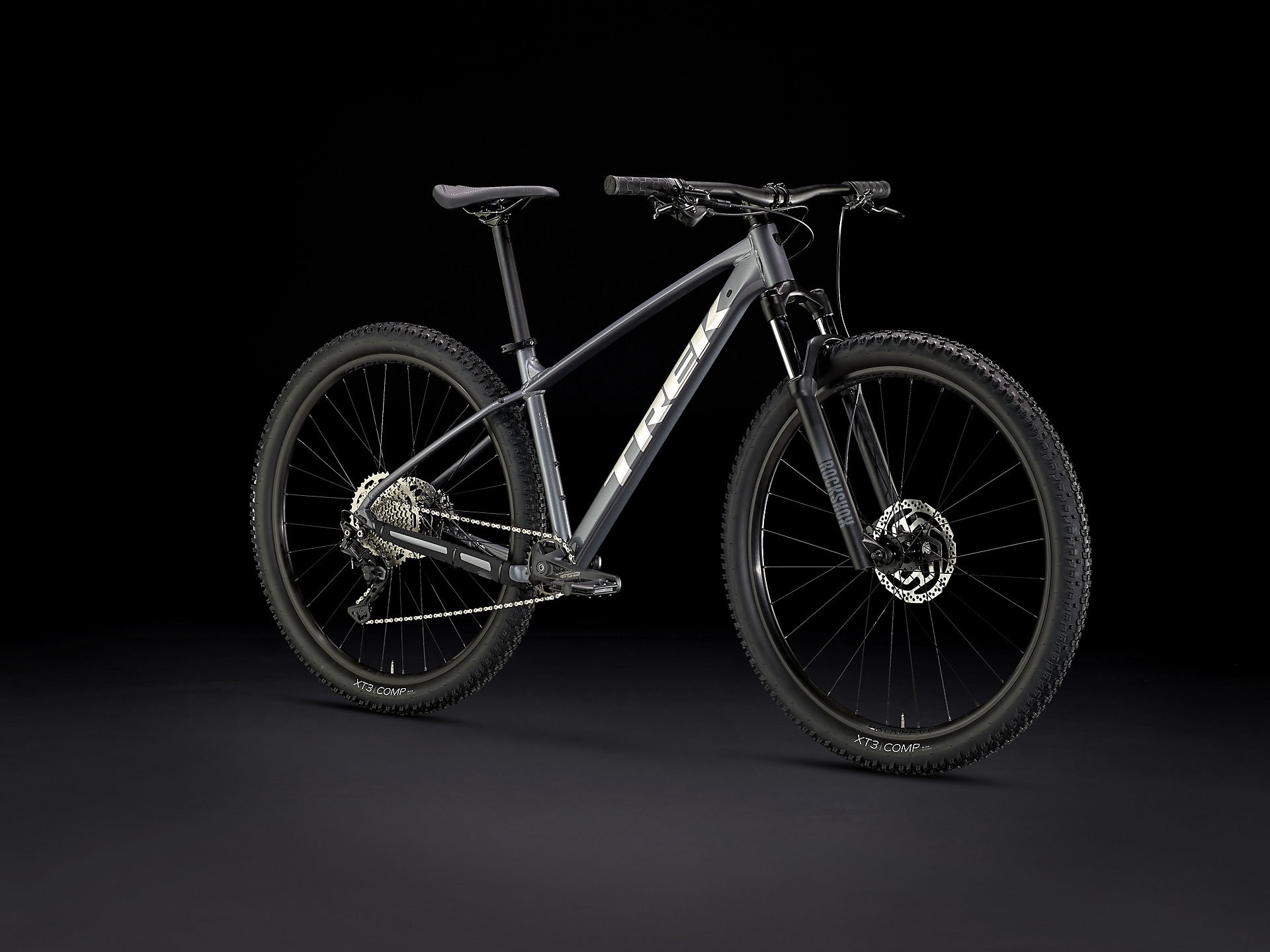

Trek Marlin 7 Grey
Trek Marlin 7 Grey

Trek Marlin 7 Grey

in stock
SKU: #5277386

Marlin 7 Gen 3

Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It offers the perfect balance between price and performance with an upgraded RockShox suspension fork that makes quick work of rocks and bumps in your path and precise Shimano Deore shifting.


Frame Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Wheels
expand_less
Hub front Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear Bontrager Switch thru axle
*Rim Size: XS , S
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Size: M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
*Tyre Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , ML , L , XL , XXL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
Drivetrain
expand_less
Shifter Shimano Deore M4100, 10 speed
Rear derailleur Shimano Deore M5120, long cage
*Crank Size: XS , S , M
FSA Alpha Drive, 28T steel ring, Boost, 170 mm length
Size: ML , L , XL , XXL
FSA Alpha Drive, 28T steel ring, Boost, 175 mm length
Bottom bracket FSA, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette Shimano Deore M4100, 11-46, 10-speed
Chain KMC X10, 10-speed
Pedal Wellgo VPE-536
Components
expand_less
Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
*Stem Size: XS , S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
Size: M , ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: XL
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set Semi-integrated, 1-1/8"
Brake Shimano MT200 hydraulic disc
*Brake rotor Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt,160 mm
Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt,180 mm
Brake Set Shimano MT200 hydraulic disc
Weight
expand_less
Weight M - 14.60 kg / 32.19 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
