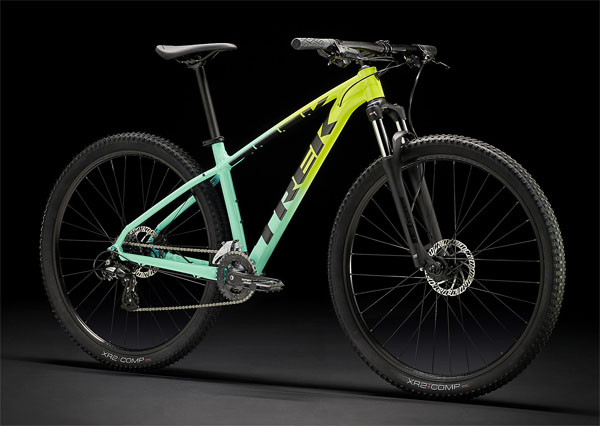

Trek Marlin 5 Green

in stock

SKU: #5255594

Marlin 5 Gen 2

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

*Frame	Size: XXS , XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Frame	Size: M , ML , L , XL , XXL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Fork	Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26'' wheel
	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Hub front	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear	152x5mm QR
*Rim	Size: XS , S Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
*Rim	Size: M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Tire	Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Max tire size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer

Shifter	Shimano Altus M315, 8 speed
Front derailleur	Shimano Altus M315, 34.9mm clamp, top swing, dual pull
Rear derailleur	Shimano Altus M310
*Crank	Size: XXS Prowheel TM-CY10, 36/22, 160mm length
	Size: XS , S , M Shimano M315, 36/22, 170mm length
	Size: ML , L , XL , XXL Shimano M315, 36/22, 175mm length
Bottom bracket	Sealed cartridge, 73mm
Cassette	Shimano HG200, 12-32, 8 speed
Chain	KMC Z8.3, 8 speed
Max chainring size	1x/2x: 34T, 3x: 42T

Saddle	Bontrager Arvada, steel rails, 138mm width
*Seatpost	Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length
	Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar	Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width
*Handlebar	Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width
*Stem	Size: XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
	Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
	Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
	Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset	Semi-integrated, 1-1/8''
Brake	Tektro HD-M275 hydraulic disc
Brake Set	Tektro HD-M275 hydraulic disc, 160mm rotor

Weight	M - 13.97 kg / 30.81 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
