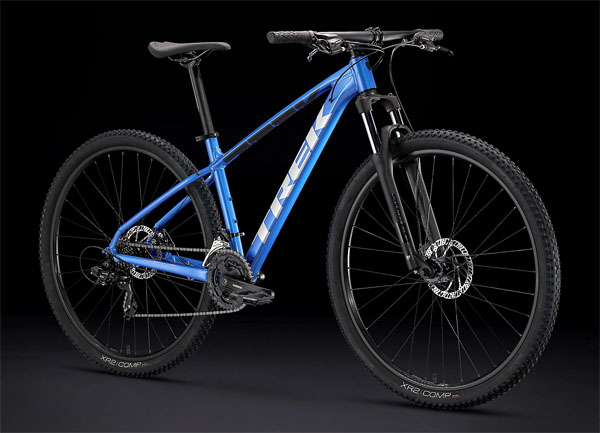

Trek Marlin 4 Blue

in stock

SKU: #5275336

Marlin 4 Gen 2

Marlin 4 is the perfect gateway to trail riding. It's ideal for new riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds, and mounts for a rack and fenders make this a great bike for new trail riders and campus commuters alike.

*Frame	Size: XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Frame	Size: M , ML , L , XL , XXL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Fork	Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
	Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Hub front	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear	Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
Skewer rear	152x5mm QR
*Rim	Size: XS , S Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
	Size: XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
	Size: M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Tire	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00''
Max tire size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer

Shifter	Shimano Altus EF500, 7 speed
Front derailleur	Shimano Tourney TY300, 34.9mm clamp, down swing, down pull
Rear derailleur	Shimano Tourney TY300
*Crank	Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170mm length
*Crank	Size: ML , L , XL , XXL Shimano Tourney TY301, 42/34/24, 175mm length
*Bottom bracket	Size: XS , S , M , ML , L , XL , XXL VP BC73, 73mm, threaded cartridge
*Bottom bracket	Size: XS , S , M , ML , L , XL , XXL Sealed cartridge, 73mm
Cassette	Shimano TZ500, 14-28, 7 speed
Chain	KMC Z7, 7 speed
*Pedal	Size: XS , S , M , ML , L , XL , XXL VP-536 nylon platform
*Pedal	Size: XS , S , M , ML , L , XL , XXL Wellgo VPE-536
Max chainring size	1x/2x: 34T, 3x: 42T

Saddle	Bontrager Arvada, steel rails, 138mm width
*Seatpost	Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length
	Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar	Size: XS , S Bontrager alloy, 31.8mm, 5mm rise, 690mm width
*Handlebar	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips	Bontrager XR Endurance Comp, lock-on
*Stem	Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
	Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
	Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset	Semi-integrated, 1-1/8''
*Brake	Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc, 160mm rotor
*Brake	Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc, 160mm rotor

Weight	M - 14.40 kg / 31.75 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
