Trek 1120

in stock

SKU: #1049234

1120

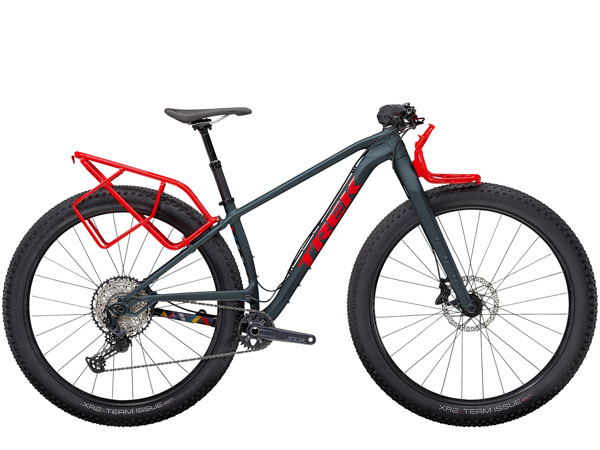

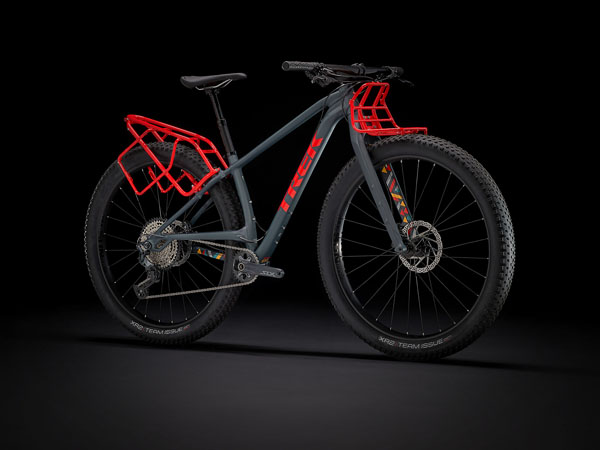

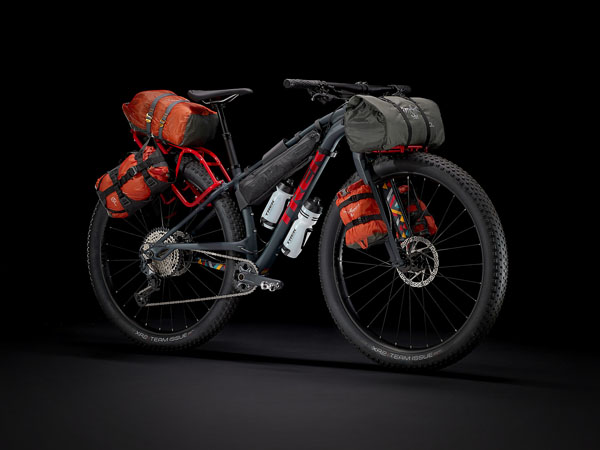

1120 is a bikepacker's dream. A rugged all-terrain frame, 29+ tyres, an included rack system and a mountain-ready spec, like a 1x drive train, add up to a touring bike with unlimited off-road capability. This bike is built to explore the most extreme back-country destinations in the farthest reaches of the world, and it's great for fast overnight bikepacking trips and sub-24s, too.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing.

Frame	Alpha Platinum Aluminium, tapered head tube, internal derailleur & dropper post routing, proprietary rack mounts, horizontal sliding dropouts, Boost148, 12 mm thru-axle
Fork	1120 HCM Carbon, rack and fender mounts, Boost110, 15mm thru axle
Max compatible fork travel	120 mm (510 mm axle-to-crown)

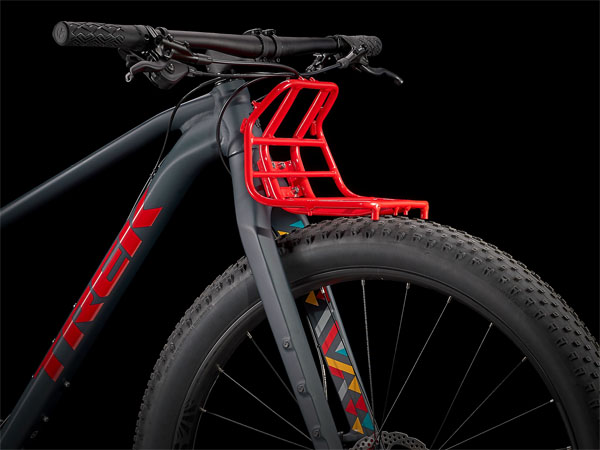

Fender/rack mounts	1120 Adventure rack system with dry-bag holders

Wheels

Hub front	Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	SUNringlé Duroc 50 SL, tubeless tape included, 28-hole, 50 mm width, Presta valve
Tyre	Bontrager XR2 Team Issue, Tubeless-Ready, Inner Strength sidewalls, aramid bead, 29x3.00"
Rim strip	Sun Ringle, 48mm
Max tyre size	29x3.00"

Drivetrain

Shifter	Shimano SLX M7100, 12-speed

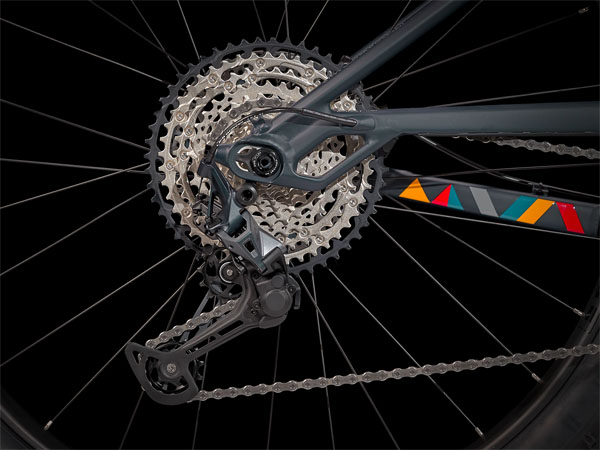

Rear derailleur	Shimano SLX M7100, long cage

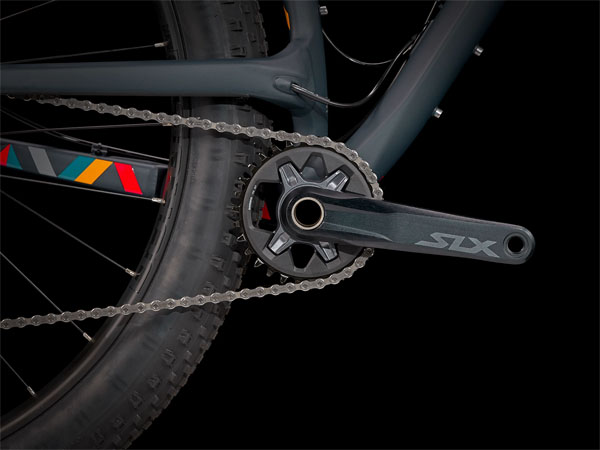

*Crank	Size: S Shimano SLX M7100, 30T alloy ring, 52 mm chainline, 170 mm length
*Crank	Size: M, L, XL Shimano SLX M7100, 30T alloy ring, 52 mm chainline, 175 mm length
Bottom bracket	Shimano MT500, 92 mm, PressFit
Cassette	Shimano SLX M7100, 10-51, 12-speed
Chain	Shimano SLX M7100, 12-speed
Max. chainring size	34T

Components

Saddle	Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost	Size: S Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
*Seatpost	Size: M, L, XL Bontrager Line Dropper, 125mm travel, internal routing, 31.6 mm, 395mm length
Handlebar	Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips	Bontrager XR Endurance Comp
*Stem	Size: S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size: M, L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Head set	FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

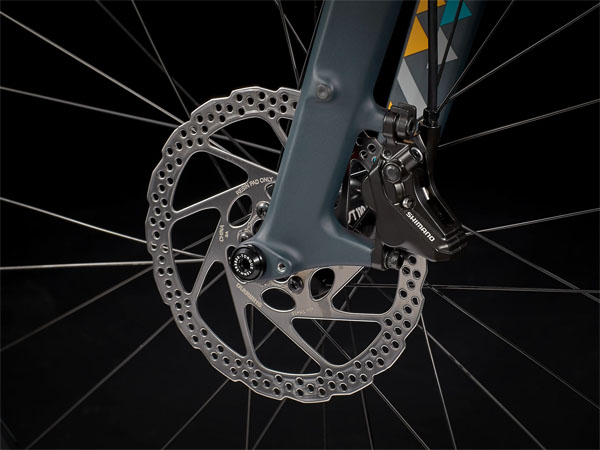

Brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
*Brake rotor	Size: S, M, L, XL Shimano RT56, 6-bolt, 180 mm
*Brake rotor	Size: S Shimano RT56, 6-bolt, 160 mm
Rotor size	Max brake rotor size: 180 mm

Accessories

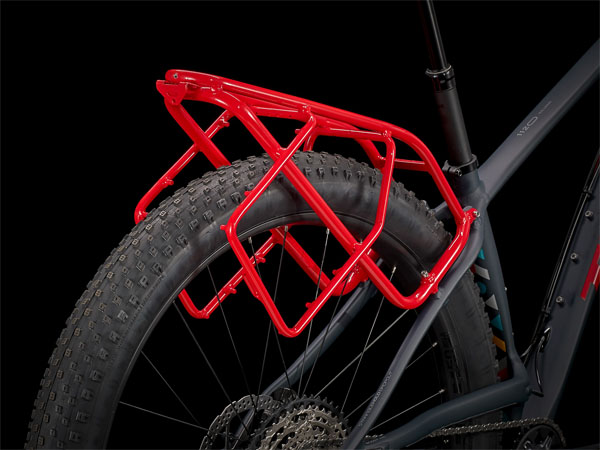

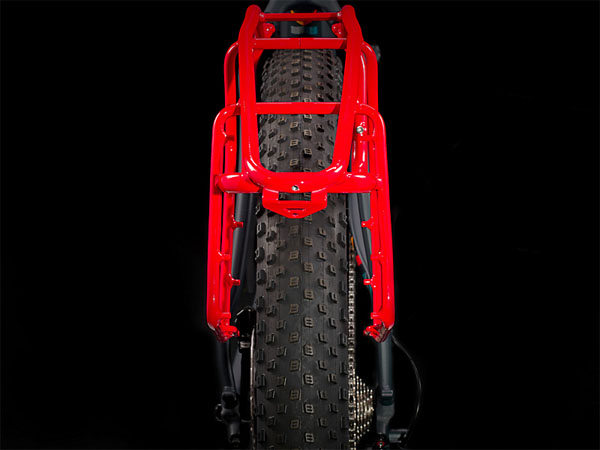

Cargo rack	1120 Adventure rack system with dry-bag holders

Weight

Weight	M - 14.08 kg / 31.05 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
