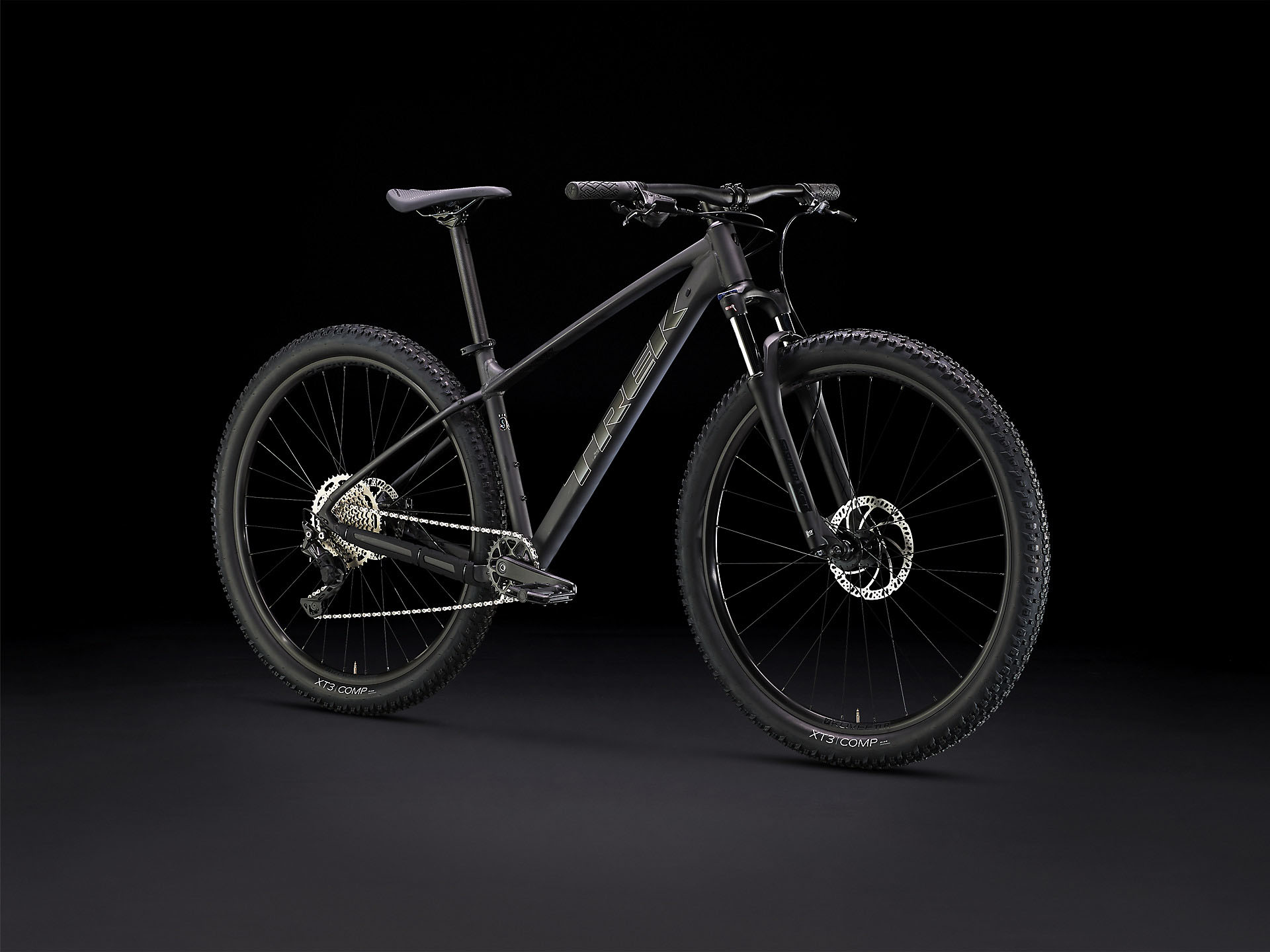

Trek Marlin 6 Black

in stock
SKU: #5277258

Marlin 6 Gen 3

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
Frame Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork Size: XS , S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: XS , S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29'' wheel, 100 mm QR, 100 mm travel
Wheels
expand_less
Hub front Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear Bontrager Switch thru axle
*Rim Size: XS , S
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Size: M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
*Tyre Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , ML , L , XL , XXL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
Drivetrain
expand_less
Shifter Shimano Deore M4100, 10 speed
Rear derailleur Shimano Deore M5120, long cage
Crank Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Bottom bracket VP BC73, 73 mm, threaded cartridge
Cassette Shimano Deore M4100, 11-46, 10-speed
Chain KMC X10, 10-speed
*Pedal Size: XS , S , M , ML , L , XL , XXL
Wellgo VPE-536
Size: XS , S , M , ML , L , XL , XXL
VP-536 nylon platform
Components
expand_less
Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: XS , S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
Size: M , ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: XL
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set Semi-integrated, 1-1/8"
Brake Tektro HD-M275 hydraulic disc, 180 mm rotor
Brake Set Tektro HD-M275 hydraulic disc, 160 mm rotor
Weight
expand_less
Weight M - 14.80 kg / 32.63 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
